Particle quantities over 2D heatmap

 1from idefix2python import RunContext, Pipeline, Fig, PartQuantity, MapMovie2D
 2from pathlib import Path
 3import numpy as np
 4
 5projectPath = Path(__file__).parent / "data_examples"
 6task = "multipart_2D"
 7configPath = projectPath / "config.json"
 8# By default the vtks are expected to be in {projetPath}/{task}/outputs/vtks/
 9
10
11fields2D = [
12    MapMovie2D(
13        "RHO",
14        r"$\rho$",
15        plot_coords=[0, 0],
16        title="Density",
17        streamlines=["VX1", "VX2"],
18        uids="all",
19    ),
20    MapMovie2D(
21        "VX1",
22        r"$v_x$",
23        plot_coords=[0, 1],
24        streamlines=["VX1", "VX2"],
25        uids=[10, 15],
26    ),
27]
28fig0 = Fig(fields2D)
29
30
31def z(v):
32    r = v.data["PART_X1"]
33    theta = v.data["PART_X2"]
34    return r * np.cos(theta)
35
36
37parts_quantities = [
38    PartQuantity(
39        "PART_X1",
40        "PART_X1",
41        uids="all",
42        plot_coords=[0, 0],
43    ),
44    PartQuantity(
45        "PART_X2",
46        "PART_X2",
47        uids="all",
48        plot_coords=[0, 1],
49    ),
50    PartQuantity("z", "z", uids="all", plot_coords=[0, 2], compute=z),
51]
52fig1 = Fig(parts_quantities)
53
54
55# Initialize context
56runContext = RunContext(task, projectPath, configPath=configPath)
57
58if __name__ == "__main__":
59    pipeline = Pipeline(runContext, [fig0, fig1])
60    pipeline.run()

multipart_2D_fig0.mp4

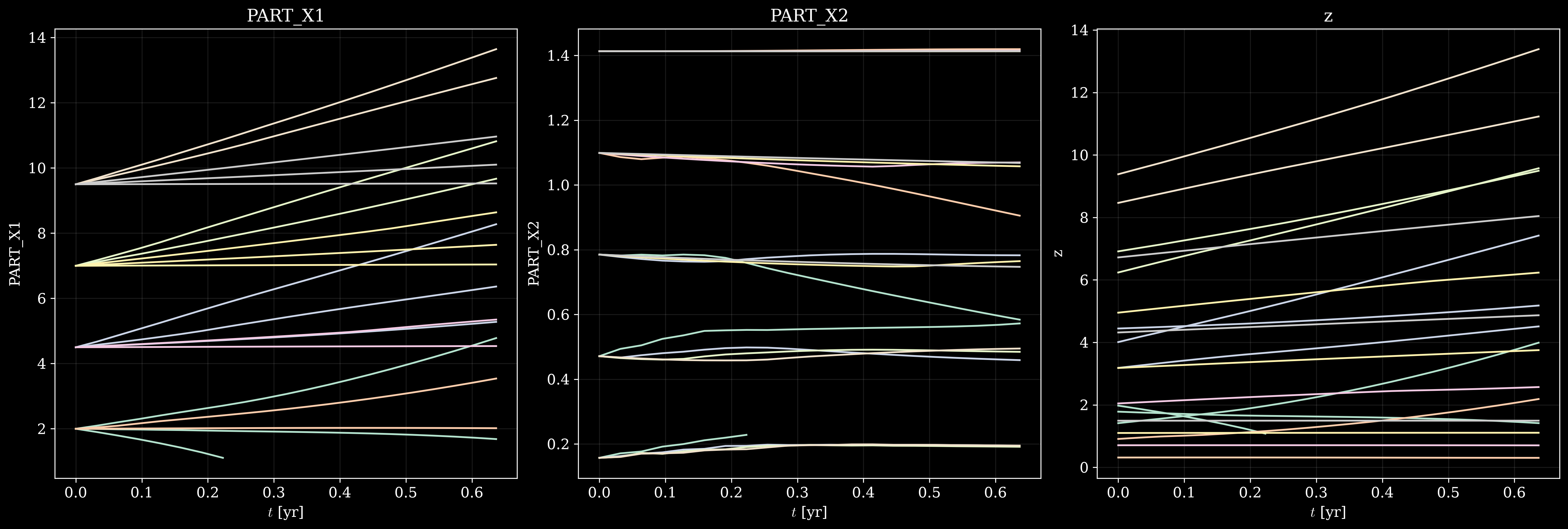

../_images/multipart_2D_fig1.png
